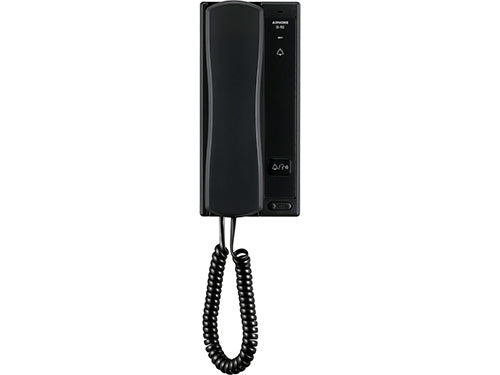

Aiphone IX-RS-B Black IP Audio Answering Station with Handset

Aiphone IX-RS-B Black IP Audio Answering Station with Handset

The Aiphone IX-RS-B is a black, surface-mount IP audio answering / room sub station for Aiphone IX and IXG Series systems. It provides handset and hands-free communication over a standard IP network and is designed for offices, schools, healthcare facilities, commercial buildings, security desks and other locations that need reliable two-way intercom communication.

Important: The IX-RS-B is an audio answering/sub station, not a video door station. It does not include an integrated video camera or display.

School Classroom-to-Admin Intercom Configuration

The IX-RS-B is particularly well suited as a classroom communication station. For better room coverage, connect an Aiphone SP-2570N ceiling speaker directly to the IX-RS-B's 8-ohm, 2-watt external speaker output using the speaker's direct 8-ohm tap.

At the administrative office, an Aiphone IX-MV7-HB can serve as the master answering station. The IX-MV7-HB and IX-RS-B communicate over the IX / IXG IP network, while the SP-2570N is wired locally to the classroom IX-RS-B. This configuration is ideal for classroom-to-admin communication because it combines centralized answering with improved classroom audio coverage.

Recommended companion components:
IX-MV7-HB Admin / Master Station
SP-2570N Ceiling Speaker

Key Features

• Black IP audio answering / room sub station
• Handset and hands-free communication
• SIP compliant
• Can be programmed to call up to 20 stations
• Three selectable call priority levels
• One programmable contact output
• One trigger input
• 8-ohm, 2-watt audio output for external speaker connection
• Audible and visual indicators for call, communication and door release status
• Custom sound files can be uploaded for selected system events
• Communication and call-tone volume control
• PoE powered using IEEE 802.3af Class 0
• IEEE 802.1X port security
• UL 62368-1 and cUL 62368-1 listed

Network & Audio Specifications

The IX-RS-B connects using Cat-5e/6 cabling and supports common network protocols including IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, SFTP, DHCP, NTP and DNS. Supported audio codecs include G.711 and G.722.

Commercial Intercom & Access Control Applications

The IX-RS-B can be used as an answering point within an Aiphone IX or IXG deployment and can participate in door-release workflows through its programmable contact output. It is well suited for classrooms, staff offices, reception desks, security stations, nurse stations and other commercial facilities requiring dependable IP audio communication.

Aiphone Intercom & Access Control in Austin, Texas

Avenger Security Services / Security Tekton installs and supports Aiphone IX and IXG Series intercom systems throughout Austin, Round Rock, Georgetown, Cedar Park, Pflugerville and Central Texas. For schools, we can integrate IX-RS classroom stations, SP-2570N ceiling speakers and IX-MV7 administrative master stations into one coordinated IP intercom platform.

Manufacturer: Aiphone
Model: IX-RS-B
Series: IX / IXG
Type: IP Audio Answering / Room Sub Station
Color: Black
Power: PoE, IEEE 802.3af Class 0
Power Draw: 4.32 W
External Speaker Output: 8Ω, 2W
Audio Codecs: G.711, G.722
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Dimensions: 7-9/16 in. H x 3-9/16 in. W x 2-5/8 in. D
